Description

Retrieves the node value (or attribute value, if specified) located at the location expressed by the XPath and places it into an Automated Workflow variable.

Declaration

<AMXMLREADNODE XPATH="text" ATTRNAME="text" RESULTVARIABLE="text" />

Example

<AMXMLREADNODE XPATH="/BookStore/Books/Cost" RESULTVARIABLE="NodeValue" />

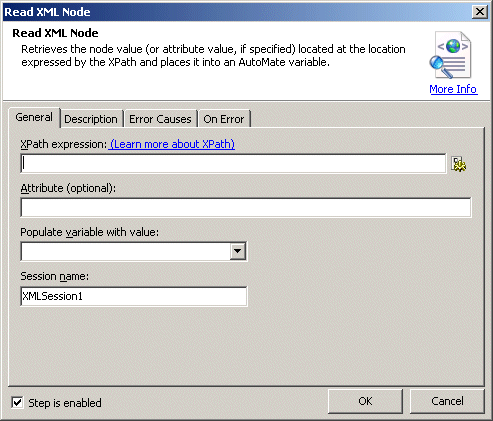

General Tab Parameters

Xpath expression: Specifies the Xpath expression to the XML node in order to read it.

Text, Required
MARKUP: XPATH="/BookStore/Books/Price"

Attribute (optional): Specifies the XML node's attribute name.

Text, Optional
MARKUP: ATTRNAME="AttributeName"

Populate variable with value: Specifies the variable to receive the node or attribute value.

Text [variable name], Required
MARKUP: RESULTVARIABLE="varname"

Session name: Specifies the session name to identify the in-memory XML document to use in subsequent XML steps. This allows several in-memory XML documents to be active simultaneously.

Text, Optional - Default "XMLSession1"
MARKUP: SESSIONNAME="FirstXMLSession"

See Also

Edit XML Node Action, Create XML Node Action, Delete XML Node Action
