Linux Filesystem Reporting
Linux Filesystem Reporting provides reporting on a variety of Filesystem characteristics of the system on which the Linux Agent is installed.

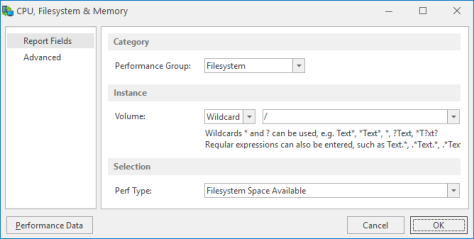

- From the required Linux System - Reporting Monitor main panel, click Add Field.
- From the Select Category dialog, select Filesystem.
Category section
Performance Group
Leave this parameter set to the default setting of Filesystem.
Instance section
Volume Instance
For most Filesystem reporting purposes the Wildcard and Regular Expressions (Regex) options can be ignored for this parameter.
From the second drop-down choice menu, select the Volume instance on which reporting is required.
Performance Type
From the drop-down choice menu select one of the following options:
- Filesystem Space Available: Reports on the actual space available on the selected volume
- Filesystem Space Available %: Reports the space available on the selected volume as a percentage
- Filesystem Space Total: Reports on the total space available on the selected volume
- Filesystem Space Used: Reports on the actual amount of space used on the selected volume
- Filesystem Space Used %: Reports on the amount of space used on the selected volume as a percentage
- Inodes Available: Reports on the number of inodes available on the selected volume
- Inodes Available %: Reports on the inodes available on the selected volume
- Inodes Total: Reports on the total number of inodes on the selected volume
- Inodes Used: Reports on the number of inodes used on the selected volume
- Inodes Used %: Reports on the number of inodes used on the selected volume as a percentage
Filesystem Performance Data

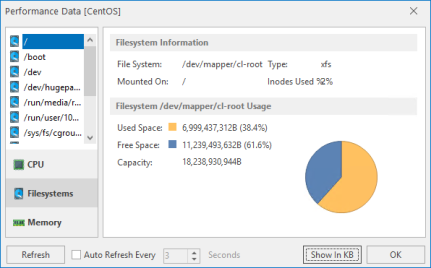

Click Performance Data on this dialog to display the current CPU, Filesystem and Memory Performance Data for this system.
This dialog allows you to view the current Filesystem information by volume.
- Click Refresh to refresh the data display or click Auto-Refresh Every and specify a time interval in seconds to automatically update the information.
- Click Show In... to change the display measurements of the selected Filesystem. The available size options are:
- Click OK to exit this display and return to the CPU, Filesystem & Memory dialog.
