Operational Status

Operational Status

How to Get There

From any Powertech Exit Point Manager for IBM i menu, press F22.

What it Does

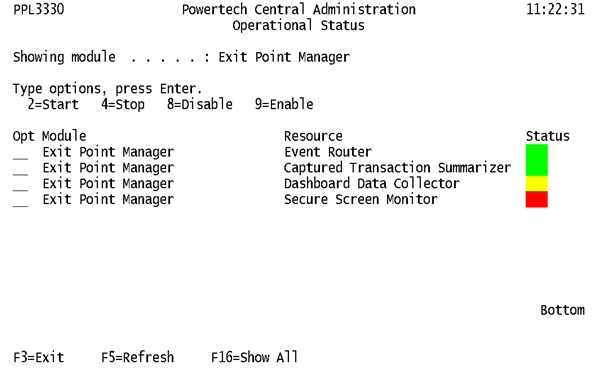

The Operational Status panel allows you to view and perform actions on the operational resources.

Field Descriptions

Opt

Enter a valid option from the list of options provided on the panel.

Module

Shows the name of the software module that published the operational resource.

Resource

Shows the name of the operational resource.

Status

Shows the status for the operational resource.

  • Green: The resource is active.
  • Red: The resource is not active.
  • Yellow: The resource is not active and is disabled so that it will not become active again until it has been enabled and restarted.

Command Keys

F3 (Exit): Exit the program without processing any pending changes.

F5 (Refresh): Refreshes the panel and resets all available text fields.

F16 (Show All/Show Powertech Exit Point Manager for IBM i): Toggles between showing Central Administration Monitor jobs and Powertech Exit Point Manager for IBM i jobs.
