My Network

My Network gives you an overall look at the health of the network set up in Robot Network. It shows the IBM i systems that HelpSystems Insite is connected to. By default, the hosts are sorted by the severity of statuses, with the host having the greatest number of the most severe statuses appearing at the top of the list. The total number of statuses for each host, node group, and node is also displayed.

In the Navigation Pane, clicktap My Network under the Robot Network menu. If the menu is hidden, hover over the Navigation Pane to expand it.

Things to know:

  • The colored icon by each row shows you the highest level of statuses that are waiting: A red icon Icon for Attention statuses means Attention, a yellow one Icon for Warning statuses Warning, and a blue one Icon for Informational statuses Informational. A green icon The green circle icon means that there are zero statuses waiting.

  • A gray icon Gray icon indicating a host or node is offline. indicates that the IBM i system has been disconnected (offline).

  • The total number of statuses shown for a host may be more than the total of the statuses for its nodes if there are any NETHOST statuses on the host.

  • If a host system is currently not running (stopped), but its IBM i connection is available, the last available status numbers for its nodes is displayed. However, if the nodes have an alternate host that is running, they will display under that host.

  • If a host system isn't available at all (either disconnected or offline for some other reason), it's listed as offline, and no information about its nodes is displayed.

The My Network page.

Things to do:

  • ClickTap any of the colored lines to toggle between seeing the total number of statuses and a breakdown of the number of statuses of each severity. Note: Hosts that were stopped (Host Offline) will show the numbers from when they went offline.

  • ClickTap the Expand button to open up the view for all the hosts. ClickTap the Collapse button to collapse it down to show just the hosts again.

  • Start typing in the Search field to find a specific host or node. See Sorting and filtering to learn how to filter your search.

  • ClickTap any row for a node or node group to view the Status Center for it. To view the Status Center for a host or the entire network, hover your mouse overtouch and hold that row and clicktap the Drill Down button on the menu that opens.

There are settings for the My Network page that allow you to choose how to sort the lists (hosts, node groups, and nodes), and to specify what types of data will be searched when you do a search.

  1. ClickTap The Settings button. Settings.

  2. Select how you want the lists sorted (Sort By). ClickTap your selection again to change the sort order to  ascending or descending.

  3. Select what you want to use when searching. You can choose to Search All Fields, or to search by host or node Name.

  4. ClickTap The Settings button.Settings to close the settings.

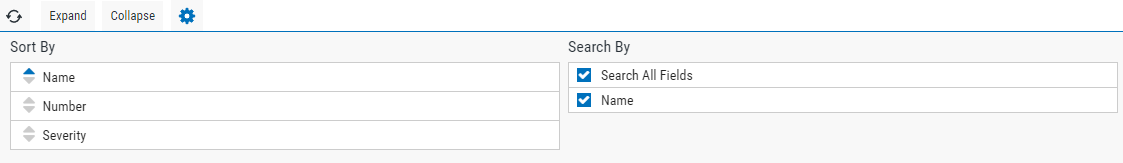

Filters available for the My Network page.
