Connections Pane

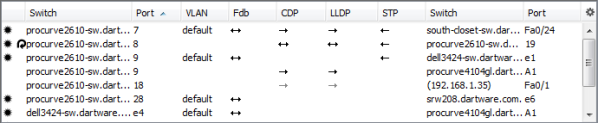

The Layer 2 Connections pane lists all switches, the switches they are connected to, and the ports through which they are connected. This information is derived from the switch's forwarding tables, as well as information available through Cisco Delivery Protocol (CDP), Link Layer Delivery Protocol (LLDP), and Spanning Tree Protocol (STP).

Connections Pane Columns

• Switch and Port - each row displays two switches and two ports. These switches are known to be connected by the specified ports.
• VLAN - yhe VLAN(s) that are present on the connection between the switches.

• Fdb - (Forwarding database)

  • A two-headed arrow means that both switches’ forwarding databases have entries for each other.
  • A single-headed arrow points toward the switch that is in the other switch's Fdb. There is no corresponding entry in the reverse direction.


• CDP and LLDP - (Cisco Discovery Protocol and Link Layer Discovery Protocol)

  • A two-headed arrow indicates that both switches hear the other’s protocol advertisements.
  • A single-headed arrow points to the switch that receives the protocol advertisements from the other.

  NOTE: Some CDP/LLDP-aware switches can turn off advertisements on certain ports. This affects the arrows.

• STP - (Spanning Tree Protocol)

  • A single-headed arrow points away from the root of the spanning tree.
  • A two-headed arrow indicates that the path for some spanning trees (such as certain VLANs) goes one way, while the path for other spanning trees goes the other way. If there are loops between these two switches, the port closest to the root may be in a blocking state.


Using the Connections Pane

• Click a column heading to sort by that column. Click again to reverse the sort.
• Click the sprocket icon to the right of the column heading bar to select which the columns are displayed in the list.
