Window Dissection Technology

Overview

Automate Desktop's Window Dissection technology can be used to precisely identify any window by effectively "dissecting" the objects and controls that are inside it. Windows are frequently identified by their title, however, in certain occasions, this may not be enough. If, for example, there are several open windows with the same title, it is necessary to specify additional criteria to identify one window from another. Window Dissection alleviates such an issue by allowing the specification of a window based on its class and handle as well as any child objects, controls, or text inside it. Multiple objects may be specified which, when combined together, form a unique window on the system.

Where Window Dissection is utilized

Window Dissection can be applied to the Window Trigger which is an object used to start a task upon occurrence of a Window-related event (that is, window opens, closes, is focused or loses focus), as well as the Window Condition. It can also be found in all activities that takes a window as a parameter, such as all Window actions and several conditional activities, as well as activities that enable interactive automation to be performed on a UI for extracting or setting data, manipulating controls, and directly interacting with other applications, such as Interactivity - Press, Interactivity - Move mouse to object, or Interactivity - Get text. The available Window Dissection parameters may vary depending on the activity. The Window Dissection parameters shown below appear in the properties of the Move mouse to object activity example (see screen shot above).

Task Builder actions

The following are Task Builder actions and activities that contain the Windows Dissection parameters:

Window Trigger

In addition to the Window-based Task Builder activities, the Window Trigger in the Task Administrator also contains Window Dissection parameters:

Accessibility engines

Window Dissection actually uses a variety of combined technologies designed to provide a single reliable source of UI information. This enables automated tasks the ability to programmatically gather accurate information about a user interface in order to interact with it, whether it be Windows, Java, or web browser-based. Each accessibility engine will populate the object properties associated with it upon selecting a control. The following is a list of the available accessibility engines and their associated object properties:

UI automation

UI Automation is Microsoft’s standard engine that provides a consistent mechanism for any window control, module or application to expose information about its user interface.

Microsoft Active Accessibility

Microsoft Active Accessibility is an older Microsoft engine that provides a consistent mechanism for some window controls, modules, or applications to expose information about their user interface.

Java Access Bridge

In order for existing assistive technologies available on Microsoft Windows systems to provide access to Java applications, they need some way to communicate with Java Accessibility Utilities. Java Access Bridge supports this communication. Java Access Bridge is a technology that enables certain Java applications and applets to be visible to assistive technologies on Microsoft Windows systems. An assistive technology application running on Microsoft Windows (for example, a screen reader) communicates with Java Access Bridge DLLs, which in turn communicates with the Java Virtual Machine through Java Access Bridge Java libraries. These Java libraries communicate with Java Accessibility Utilities. Java Accessibility Utilities collects information about what is happening in the Java application, which it forwards to the screen reader through Java Access Bridge.

Internet Explorer DOM

DOM (Document Object Model) is the specification for how objects in a web page are represented (for example, text, images, headers, links, etc.).

Setting Window Dissection properties

Window Dissection preferences are accessible from the action editor of qualifying actions / activities under the Properties tab.

Parameters

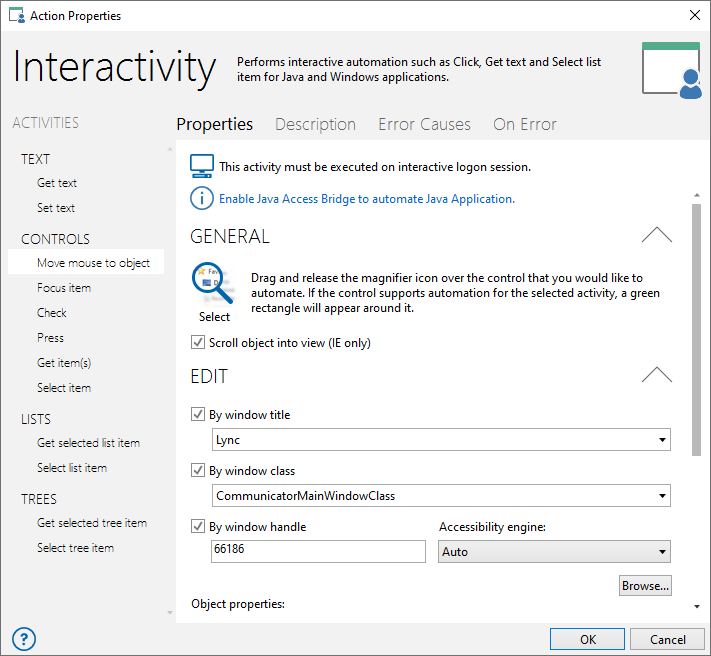

Window Dissection parameters are most easily set by dragging the provided magnifier icon from the properties dialog and releasing it over the desired window / object. This populates available parameters with the proper specifications. A green border indicates successful detection.

Property Type Required Default Markup Description
By window title Text No (Empty) WINDOWTITLE="theTitle" If enabled, the window title will be used in the automation process.
By window class Text No (Empty) WINDOWCLASS="theClass" If enabled, the window class will be used in the automation process. A window class is a set of attributes that the system uses as a template to create a window. Every window is a member of a window class. All window classes are process specific.
By window handle Number No (Empty) WINDOWHANDLE="number" If enabled, the window handle will be used in the automation process. A window handle is a unique identifier that is assigned to each window created.
Accessibility engine Text (options) No Auto
  • ACCESSIBILITYENGINE="auto"
  • ACCESSIBILITYENGINE="ui_automation"
  • ACCESSIBILITYENGINE="active"
  • ACCESSIBILITYENGINE="java"
  • ACCESSIBILITYENGINE="ie"
The accessibility engine that will be used to programmatically gather accurate information about a user interface in order to interact with it. The available options are:
  • Auto - Starting with UI Automation, Automate Desktop detects which accessibility engine to use based on the control's properties.
    NOTE: Some controls may not be compatible with this option and will require one of the other accessibility engine options to be manually selected for best results.
  • UI Automation - UI Automation will be used, which is Microsoft's standard for exposing information about its user interface.
  • Active - Active Accessibility will be used, which uses an older Microsoft engine for exposing information about its user interface.
  • Java - Java Access Bridge will be used, which is a technology that enables certain Java applications and applets to be visible to assistive technologies on Microsoft Windows systems.
  • Internet Explorer - Internet Explorer DOM will be used, which is the Document Object Model used to represent objects in a web page (that is, text, images, headers, links, etc.).
Toolkit Text No (Empty)
  • TOOLKIT=UIAutomation
  • TOOLKIT=WindowsAccessibility
  • TOOLKIT=JavaAccessibility

If enabled, specifies that the toolkit (a set of basic building units for graphical user interfaces) will be examined when determining a matching object. If disabled, the toolkit will be ignored.

The toolkit that appears is based on the Accessibility engine used:

  • UI Automation - UIAutomation
  • Active - WindowsAccessibility
  • Java - JavaAccessibility
  • Internet Explorer - WindowsAccessibility
Type Text No (Empty) TYPE=PushButton If enabled, specifies that the object's type (that is, Button, Checkbox, Trackbar) will be examined when determining a matching object. If disabled, the type will be ignored.
Class Text No (Empty) CLASS=SysTreeView32 If enabled, specifies that the object's class (that is, XTPToolBar, SysTreeView, MDIClient) will be examined when determining a matching object. If disabled, the class will be ignored.
FrameworkId Text No (Empty) FRAMEWORKID=WPF If enabled, specifies that the object's framework ID (the framework technology used to create the object) will be examined when determining a matching object. If disabled, the framework ID will be ignored.
Name Text No (Empty) NAME=Cancel If enabled, specifies that the object's name (a unique identifier for an object) will be examined when determining a matching object. If disabled, the name will be ignored.
AutomationId Text No (Empty) AUTOMATIONID=System If enabled, specifies that the object's automation ID (a unique identifier for an object) will be examined when determining a matching object. If disabled, the automation ID will be ignored.
Value Text No (Empty) VALUE=1 If enabled, specifies that the object's value (which usually coincides with the Name property) will be examined when determining a matching object. If disabled, the value will be ignored.
Role Text No (Empty) ROLE=desktop pane If enabled, specifies that the object's role type (the control type provided by the Java Accessibility bridge) will be examined when determining a matching object. If disabled, the role type will be ignored.
Description Text No (Empty) DESCRIPTION=JScrollPane If enabled, specifies that the object's description (the description given for an object) will be examined when determining a matching object. If disabled, the description will be ignored.
X Number No (Empty) X=80 If enabled, specifies that the object's X coordinate (a given number of pixels along the horizontal axis of a window starting from the extreme left side) will be examined when determining a matching object. If disabled, the X coordinate will be ignored.
NOTE: The X and Y coordinates are relative to the specified window as opposed to the screen.
Y Number No (Empty) Y=90 If enabled, specifies that the object's Y coordinate (a given number of pixels along the vertical axis of a window starting from the top-most portion) will be examined when determining a matching object. If disabled, the Y coordinates will be ignored.
NOTE: The X and Y coordinates are relative to the specified window as opposed to the screen.
Width Number No (Empty) WIDTH=711 If enabled, specifies that the object's pixel width will be examined when determining a matching object. If disabled, the pixel width will be ignored.
Height Number No (Empty) HEIGHT=421 If enabled, specifies that the object's pixel height will be examined when determining a matching object. If disabled, the pixel height will be ignored.
IndexInParent Text No (Empty) INDEXINPARENT=1 If enabled, specifies that the object's index in parent number (the numeric identifier of a child object located within a parent object) will be examined when determining a matching object. If disabled, the index in parent number will be ignored.
ParentPath Text No (Empty) PARENTPATH=50032|50033 If enabled, specifies that the object's parent path (the sequence of control type identifiers that lead to the object) will be examined when determining a matching object. If disabled, the parent path will be ignored.
Occurrence Number No (Empty) OCCURRENCE=1 If enabled, specifies that the object's occurrence (the numeric identifier of an object, useful when multiple matching objects are found) will be examined when determining a matching object. If disabled, the occurrence will be ignored.

Examples

NOTE:
  • Copy and paste the sample AML code below directly into the Task Builder Steps Panel.
  • To successfully run the sample code, update parameters containing user credentials, files, file paths, or other information specific to the task to match your environment.

Example 1

Maximize the window "Untitled - Notepad".  The window must contain the objects: names = "Application", values = "", classes = "Notepad", types = "MenuBar", X = "229", Y = "317", Check names = "YES", check values = "", check classes = "YES", check types = "YES", check positions = "YES".

Copy
<AMWINDOWMAXIMIZE WINDOWTITLE="Untitled - Notepad" CONTAINSOBJECT="YES" OBJECTNAME="Application" OBJECTCLASS="Notepad" OBJECTTYPE="MenuBar" CHECKOBJECTNAME="YES" CHECKOBJECTCLASS="YES" CHECKOBJECTTYPE="YES" OBJECTXPOS="229" OBJECTYPOS="317" CHECKOBJECTPOSITION="YES" />

Example 2

Get text from the control: (class = "Edit", type = "SelectableText", value = "Hello World!", X = "231", Y = "339", check class = "YES", check name = "NO", check type = "YES", check value = "YES", check position = "YES") and populate the variable "theVar".  The object must be in the window : (title = "Untitled - Notepad", class = "Notepad", handle = "58263186").

Copy
<AMGETTEXT WINDOWTITLE="Untitled - Notepad" WINDOWCLASS="Notepad" WINDOWHANDLE="58263186" OBJECTVALUE="Hello World!" OBJECTCLASS="Edit" OBJECTTYPE="SelectableText" CHECKOBJECTVALUE="YES" CHECKOBJECTCLASS="YES" CHECKOBJECTTYPE="YES" CHECKOBJECTPOSITION="YES" OBJECTXPOS="231" OBJECTYPOS="339" RESULTVARIABLE="theVar" />
