Work with Summarized Captured Transactions

How to Get There

On the Active Analytics Menu, select option 1, Summarized Captured Transactions.

What it Does

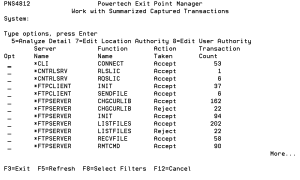

The Work with Summarized Captured Transactions panel allows you to display and analyze Captured Transactions, and work with Location and User Authority for a selected Server.

Field Descriptions

System

System indicates the target of any operations you perform. When you add rules, for example, those rules will be sent to, and will affect processing on, the System named.

Filters Applied

This field displays only if a filter is applied. See Filter Selection. Displays the filters used to narrow down the Captured Transactions that are displayed on the screen.

Opt

Enter a valid option from the list of options provided on the list panel.

Server Name

A Server in Powertech Exit Point Manager is a controlled entry point into your system. These entry points are determined and defined by IBM. Powertech Exit Point Manager has assigned easy-to-remember names to these controlled entry points.

Function Name

A Function, or Server Function, in Powertech Exit Point Manager represents a class of operations that a given Server may perform.

For example, the *SIGNON Server classifies its operations as those pertaining to changing passwords, generating authentication tokens, and retrieving signon information. Powertech Exit Point Manager has assigned easy-to-remember names to these Functions, such as CHGPWD, GENAUTTKN and RETRIEVE.

Action Taken

Action Taken indicates whether the Captured Transaction was Accepted or Rejected, or if it Failed.

Transaction Count

The number of times this exact transaction has been captured.

Options

5=Analyze Detail

Opens the Work with Captured Transactions panel, where you can memorize, display, or delete Captured Transactions. You can also create User Rules, Location Rules, and Pre-filter Rules based on those transactions.

7=Edit Location Authority

Opens the Work with Security by Location panel, where you can view or change Location Rules.

8=Edit User Authority

Opens the Work with Security by User panel, where you can view or change User Rules.

Command Keys

F3 (Exit): Exit the current panel without processing any pending changes.

F5 (Refresh): Refreshes the panel and resets all available text fields.

F8 (Select Filters): Select the filters to filter the Summarized records.

F12 (Cancel): Discards changes and returns to the prior panel.
