Task Administrator Top Panel

Overview

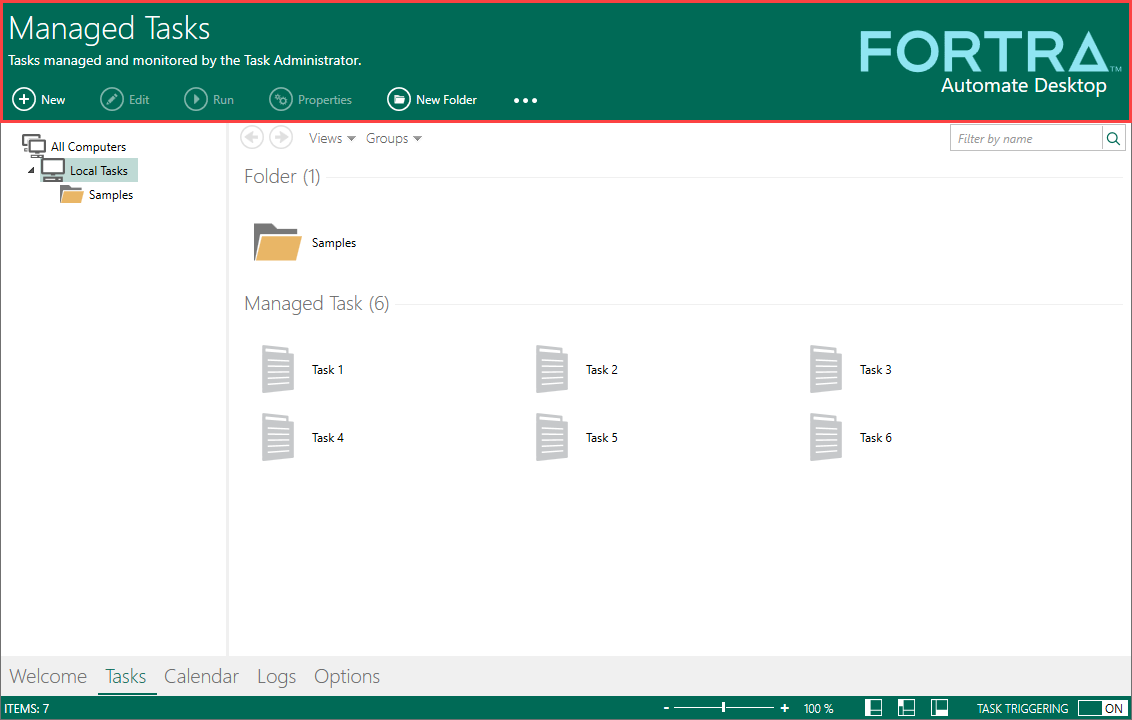

Task Administrator's top panel (also known as header) spans across the uppermost portion of the interface. To simplify navigation, this panel dynamically displays the title of your current location and provides buttons that enable one-click access to the most common actions or commands to perform in relation to that location. For instance, if you are presently managing your tasks, the top panel will display the title "Managed Tasks" in large, easy to read letters and supply a row of buttons that lets you perform the most common task related operations, such as New, Edit, Run, and Properties.

The Task Administrator interface generally looks identical, whether the current connection is local or to a remote client. Therefore, some may have trouble distinguishing each connection. If connected locally, the title bar will always display "localhost." If connected remotely, it will display the computer name or IP address of the remote computer where the remote Automate Desktop client (or Runtime) resides. The title bar, which sits directly above the top panel contains general GUI related commands such as Minimize, Maximize and Close. More importantly, it also displays information related to your current connection, which can be very helpful for those that  manage connections to multiple remote Runtime clients.

Related Topics

Managed tasks commands

When the Task Administrator is in the Managed Tasks view (by selecting Tasks from the Navigation bar), the top panel displays viewable buttons associated with the most common task related commands. The table below describes theses commands:

Button Description
New Creates a new task. By default, this opens the Managed Task Wizard to assist with constructing a new task.
Edit Allows modifications to be made to the steps of the selected task by opening the Task Builder. This command is active only if a single task is selected in the main panel.
Run Manually runs the selected task. This command is active only if a single task is selected in the main panel.
Properties Displays the properties of the selected task. This command is active only if a single item (either task or folder) is selected in the main panel.
New Folder Creates a new folder in the specified location.

More options

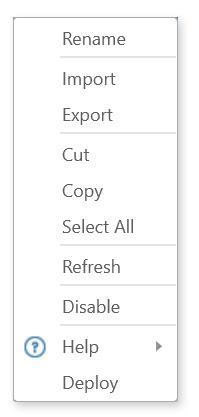

When the Task Administrator is in the Tasks view (by selecting Tasks from the navigation bar), along with common task related commands, the top panel also displays a More Options menu represented by an ellipsis (...).

Parameters

The following table describes the available menu items:

Menu Item Description
Rename Renames the selected item.
Import Imports the specified task (.AML) files into the Task Administrator. For more details, see Importing Tasks.
Export Exports the selected tasks onto the specified location. This command is active only if one or more tasks are selected in the pain panel.
Cut Removes the selected objects from the current location of the main panel and copies it to the clipboard. The data in the clipboard can later be inserted in the position where the Paste command is issued. To select more than one object, hold down CTRL during selection.
Copy Creates a duplicate of the selected objects and places the data in a clipboard. The data in the clipboard can later be inserted in the position where the Paste command is issued.
Select All Selects all objects that appear in the main panel.
Refresh Brings task status and results up to date. Use this option when running multiple tasks concurrently in order to view the most current event based information that is generated by Task Administrator when set to the view is set to Details.
Disable/Enable Disables any triggers attached to the selected tasks or enables currently disabled triggers.
NOTE: A disabled task (which are grayed out by default) cannot run automatically, however, they can still be run manually. To run one or more tasks manually, from the Task Administrator's main panel, select the desired  tasks and click the Run button located on the top panel or simply right-clicking the tasks and select Run.
Help Displays help related information. The available options are:
  • Contents - Opens the Automate Desktop help file.
  • Product information - Opens the Automate Desktop product information webpage.
  • User Resource Center - Opens the User Resource Center (URC), the source for Automate Desktop news, tutorials, & other educational resources.
  • My Account - Opens the customer account page allowing users to log into their account in order to modify user information, access downloads and view support resources.
  • Check for Product Updates - Checks if an update of Automate Desktop is currently available for download.
  • Release Notes - Displays the release notes for the version of Automate Desktop currently installed, including new features and bug fixes.
  • About - Displays the currently installed version of Automate Desktop as well as copyright information.
Deploy Deploys the selected tasks to a remote runtime component.

Compact mode

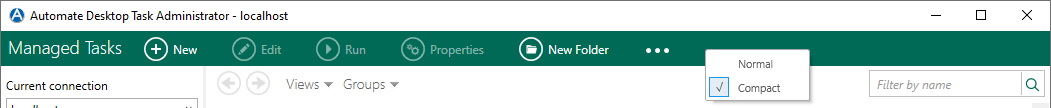

On a daily basis, many perform this juggling act of interacting with multiple programs and manipulating numerous graphical interfaces resulting in an increasingly cluttered screen. In such cases, you may require more workspace in order to display additional Task Administrator elements and view more information. This can be done by setting the top panel to compact mode. Right-click an empty region anywhere inside the top panel, and then select Compact (as shown below). The panel will become condensed while still containing all available buttons and controls.
